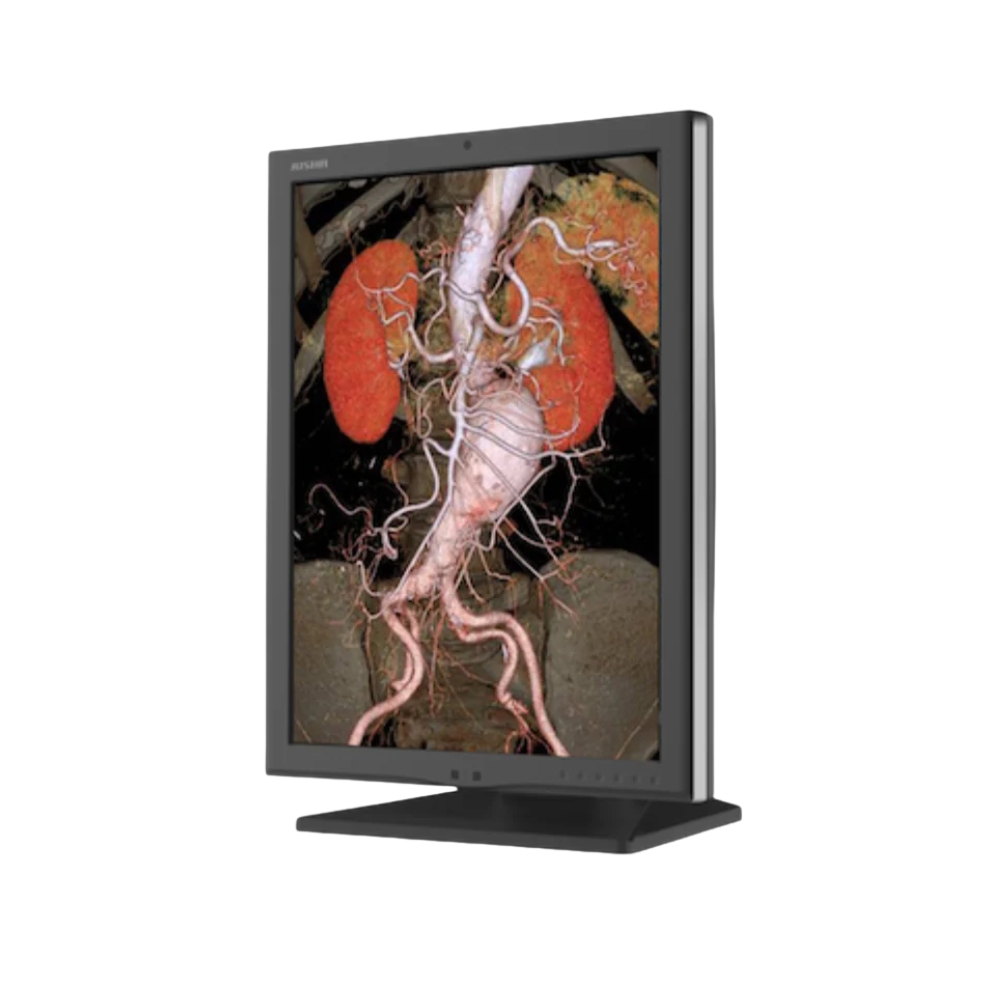

C270G
2MP Medical-grade color monitor.With 30 bit color depth,Full Sereen Uniformity,build-in sensor and QA software,the monitor is quality guaranteed all the time.Color display allows you see more than just black and white.
1. 14bit LUT
The 14bit lookup table further reduces the DICOM error, and the distinction between two adjacent gray scales is more obvious, which is conducive to the diagnosis of the early lesion tissue with the smallest gray scale difference from the normal tissue.
2. DICOM Calibration
Complying with DICOM 3.14 standard and equipped with dynamic LUT, the monitor is ensured to meet the DICOM requirements at any brightness, contrast, and color temperature, improves the accuracy and stability of lesion diagnosis.
3. Full Screen Uniformity
Through the pixel-by-pixel full-screen brightness uniformity calibration, the difference in brightness and color temperature of different screen areas caused by the characteristics of the liquid crystal panel can be effectively reduced. Ensure that any area of the entire screen conforms to the DICOM standard, which can significantly reduce missed and misjudged diagnosis.
4. Lightbox Mode
The Lightbox Mode can increase the brightness of the monitor to peak value,which can reploce the traditional Lightbox for film reading and increase work efficiency.
5. SmarTouch
Medical image diagnosis usually requires high brightness, and long-term use of high-brightness displays will damage your eyesight. In order to solve this problem, we provide a one-key brightening function. You can use a simple shortcut key to switch the display brightness between normal and maximum, providing great convenience for your work.
6. Integrated Front Sensor
The user can customize the black point brightness, white point brightness and environmental brightness of the DICOM curve according to the actual environment and diagnosis requirements. Build-in sensors measure the current display brightness in real time, enabling the monitor automatically adjusted to the best status, and complying with DICOM standard any time.
7. JUSHA QA Compatible
Users can check and calibrate the monitor status by themselves, removing the side effects from panel’s aging, which prolongs the lifespan of the monitor and achieving more accurate image.
8. Shark Gill Design
Award winning Shark Gill outlook design fuse the shark elements into product, achieving a modern and polished look.
9. Multi-stance Stand
You can easily change the angle and height of the monitor with our stand, minimizing the fatigue during everyday viewing.
10. Ambient Light Adaptive
The monitor measures the ambient light in real time, and adjusts the display accordingly to ensure accurate diagnosis.
11. Human Detection
Human detection feature will turn off the monitor when no person is presented. This prolongs the monitor’s life cycle, and helps save energy.
12. Energy Efficient
With minimum power consumption of 0.5W, the monitor is eco-friendly and energy-saving,the LED backlight lifespan is also longer.
Model | C270G |
Type | IPS |
retroilluminazione | LED |
Diagonal size | 21.3" |
Display area | 432(H)×324(V)mm |
Resolution | 1600×1200 |
Aspect ratio | 4:3 |
Pixel Pitch | 0.27mmx0.27mm |
Viewing angles | 178° |
Maximum brightness (typical) | 1000 cd/m² |
Maximum calibrated brightness | 600 cd/m² |
Default brightness | 400 cd/m² |
Minimum brightness | 200 cd/m² |
Presets | DICOM/GAMMA2.2/GAMM2.4/ CT/MRI-JS /DSA/DSI |
Response time(Ton+Toff)/2 | 8ms |
Qualitas QA | Yes |
Features | SmarTouch, XFV、PI、ABA、ALC、Real-time DICOM calibration |
Video input | DP x 1 DVI x 1 |
USB Ports | Upstream USB-B 2.0 x 1 Downstream USB-A 2.0 x 2 |
Power input | 12V DC-5A |
Typical power | 16 W |
Maximum power | 46 W |
Power saving | < 0.5 W |
Stabilizzatore di retroilluminazione | Yes |
Front sensor | Yes |
Ambient light sensor | Yes |
Other sensors | Human,Temperature |
Housing color | Black |
Dimensions with stand(W x H x D) | 382mm×528mm×238mm |
Dimensions without stand(W x H x D) | 382mm×490mm×74mm |
Net weight with stand | 10.8kg±0.5kg |
Net weight without stand | 6.5kg ±0.5kg |
VESA | 100 x 100 mm |
Certications | CE, FDA, CCC, Inmetro, EAC, BIS, Energy saving |
