EIZO RX-570

RadiForce RX570
21.3″ Color LCD Monitor
5 Megapixel High-Definition Color Monitor for Proficient Breast Imaging
Categories: ,
Description

High Fidelity Images for Peace of Mind

Make the Precise Diagnosis

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14 standard. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.
Factory Adjustment



Simple Calibration with Built-In Sensor

With the Integrated Front Sensor (IFS) built into the front bezel and the bundled monitor control software RadiCS LE, you can easily calibrate to DICOM Part 14 standard without having to mount, run, and remove an external sensor.

Energy-Efficient Calibration with WS Power Off

IFS

Mammography QC Standards Compliance

EIZO’s easy-to-use quality control software and calibration sensor RadiCS UX2 (sold separately) performs precise calibration conforming to DICOM Part 14 and enables high-grade quality control (QC), complying with ACR Practice Guidelines and other QC standards for digital mammography monitors.

 Learn more about QC standards for digital mammography monitors and RadiCS

5MP

5 Megapixels for High-Definition Display

When a monitor displays data that exceeds its maximum resolution, the data is downsampled, resulting in a loss in image quality. The RX570 displays 5 megapixels (2048 x 2560 pixels) with a pixel pitch of 0.165 mm, ensuring highly detailed mammography images are shown more clearly compared to 2 or 3 megapixel monitors.

Clearlyai



Optimum Breast Screening Monitor

The monitor has obtained FDA 510(k) clearance by the U.S. Food and Drug Administration for breast tomosynthesis and mammography. This ensures that the monitor is capable of displaying detailed breast screening images where high performance is essential. Optimum Breast Screening Monitor

Full Color Support for Ultrasound, Breast CT and MRI

The RX570, while a color monitor, achieves an impressive brightness of 1200 cd/m2. This allows it to display high-definition monochrome breast tomosynthesis and mammography images conveniently alongside color images from breast MRI, CT, and ultrasound, all on one screen.

ltps

Variations for Specific User Needs

EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations to suit user environments. AG treatment is ideal for exceptionally bright environments and drastically reduces glare from ambient lighting. AR treatment is ideal for moderately-lit environments to reduce mild screen glare while maintaining crisp text and images.



ar_coating



Evolve Your Image Reading

Hybrid Display of Monochrome and ColorhybridgammaPXL

The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images, optimizing grayscale for each pixel. This allows for the simultaneous display of monochrome mammography images according to the DICOM standard (GSDF) and color images from breast MRI, CT, and ultrasound at Gamma 2.2 on the same screen, enhancing reading efficiency.



hybrid gamma



Visual Assessment

Kumamoto Chuo Hospital in Japan conducted a visual assessment of a RadiForce monitor equipped with the Hybrid Gamma PXL function. They observed an approximate 37% improvement when using a color monitor with Hybrid Gamma PXL compared to one without. In addition, Hybrid Gamma PXL performed as effectively as monochrome monitors with GSDF when displaying monochrome images.

 See the White Paper “The Advantages of Hybrid Gamma PXL”  [PDF]

37per improvement

Achieve Clarity True to the Source Data

A medical monitor must achieve high brightness to meet performance standards. However, to achieve this in an LCD panel, the pixel aperture ratio has to be increased, resulting in a decline in sharpness. EIZO’s unique Sharpness Recovery technology restores this loss in sharpness (MTF), ensuring images displayed on the monitor remain true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.515 cycles/mm) the MTF increases by approximately 45%.

sharpness



Boost Images for Easy Viewing

The Instant Backlight Booster function allows users to maintain the monitor at the recommended 500 cd/m2 for standard tasks and, with a single hotkey, instantly boost brightness to the maximum level of 1200 cd/m2 for a seamless user workflow. The brightness automatically reverts to its original level after a set period, ensuring optimal performance for critical image viewing sessions while minimizing strain on the backlight over time.

DICOM Part 14 is not supported while Instant Backlight Booster is on.

Instant Backlight Booster

See more with animation gif_animation_icon

Barrier-Free Workstyle

Modern medical imaging workflows require multiple workstations and monitors, which can be complex and impact productivity. To promote a barrier-free workstyle, the monitor features Switch-and-Go function, allowing users to operate two workstations with a single keyboard and mouse. This enables seamless cursor movement across screens, reducing the need for multiple peripheral devices and enhancing overall workflow efficiency.

Additional signal cables and USB cables required.

Switch and Go

See more with animation gif_animation_icon



Seamless Viewing, Hassle-Free Use

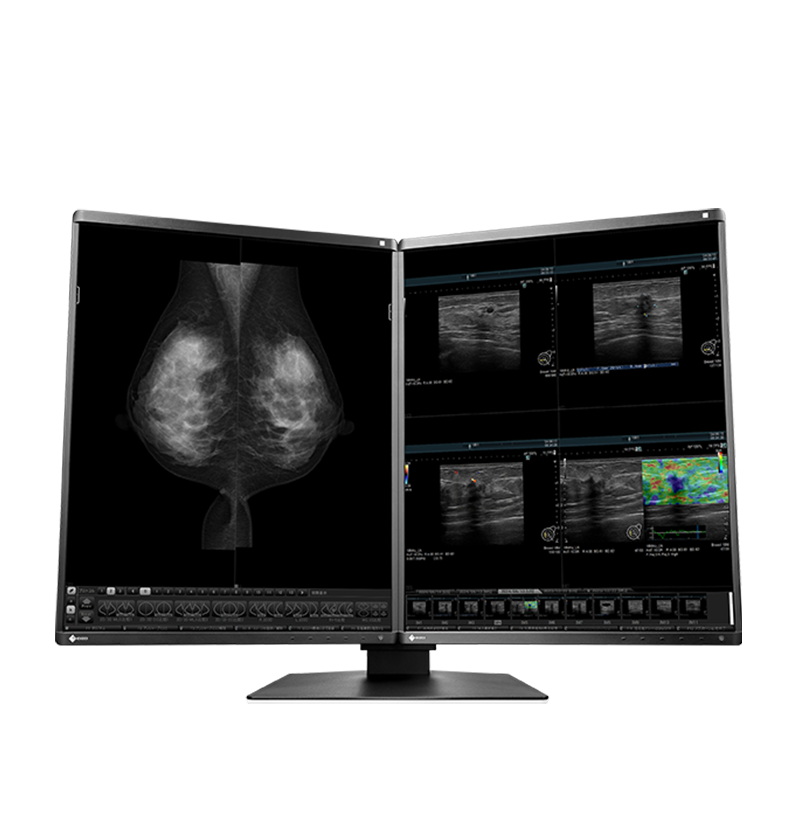

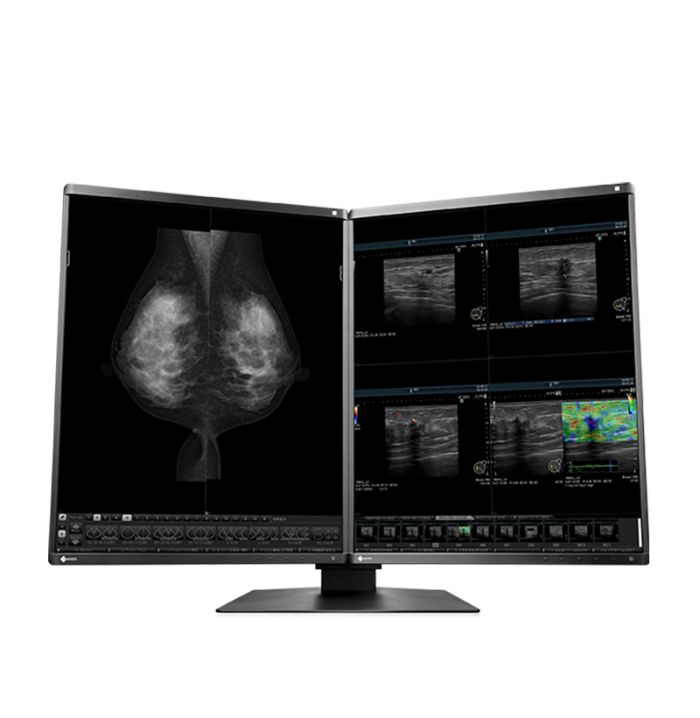

The RX570 MammoDuo integrates two RX570 monitors side-by-side with a dedicated stand.

Distraction-Free Viewing

With a 7.5 mm bezel, the total distance between two side-by-side screens is only 15 mm. Furthermore the screen is almost completely flat with the bezel sitting only 2.5 mm above the screen.

bezel

Easily Adjust Screen Position

With the dedicated stand, you can adjust the height and swivel of the two monitors in tandem without any gaps between them.
topdownswivel



Clean and Sophisticated

The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic. Rounded corners and elegant curves on the back present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

create relief

Hassle-Free Multi-Monitor Configuration

The monitor is equipped with DisplayPortTM input and output terminals. Using the output terminal allows you to easily configure several monitors in a daisy chain sequence without the hassle of excessive cabling.

A graphics board that supports daisy chain is necessary.
Additional signal cables may be required.

Compatibility between RadiForce monitors using DisplayPort daisy chains

daisy chain



Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year full warranty.



Environmental Initiatives

Eco-Conscious Packaging

EIZO is committed to reducing its environmental impact by transitioning away from plastic and other environmentally unfriendly materials in product packaging. Single RX570 monitors are packaged using molded pulp made from recycled cardboard and newspaper, and dual monitors are packaged in cardboard. The monitor’s cables are wrapped in paper instead of plastic bags.

EIZO also uses halogen-free PCBs (printed circuit board).

Model-Pulp

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “EIZO RX-570”

Your email address will not be published. Required fields are marked *

Specifications
Model Variations RX570-BK-MD: Anti-Glare coating, two screens, with dual stand, black
RX570-ARBK-MD: Anti-Reflection coating, two screens, with dual stand, black
RX570-BK: Anti-Glare coating, one screen, with stand, black
RX570-ARBK: Anti-Reflection coating, one screen, with stand, black
Panel
Type Color (IPS)
Backlight LED
Size 21.3" (54.1 cm)
Native Resolution 2048 x 2560 (4:5 aspect ratio)
Viewable Image Size (H x V) 337.9 x 422.4 mm
Pixel Pitch (H x V) 0.165 x 0.165 mm
Display Colors 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 1200 cd/m2
Recommended Brightness for Calibration 500 cd/m2
Contrast Ratio (typical) 2200:1
Response Time (typical) 12.5 ms (black-white-black, half cycle)
Video Signals
Input Terminals DisplayPort x 2, DVI-D (dual link)
Output Terminals DisplayPort (daisy chain)
Digital Scanning Frequency (H / V) 31 - 135 kHz / 23 - 61 Hz
USB
Upstream USB 2.0: Type-B x 2
Downstream USB 2.0: Type-A x 2
Dedicated Charging Port USB Type-C (Power Supply 15 W max.)
Power
Power Input AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption 34 W
Maximum Power Consumption 115 W
Power Save Mode 1 W or less
Sensor Backlight Sensor, Integrated Front Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Hybrid Gamma PXL Yes
Work-and-Flow Hide-and-Seek, Switch-and-Go, Point-and-Focus, Instant Backlight Booster
Preset Modes DICOM, CAL1, CAL2, Custom, sRGB, Text
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight RX570-MD, RX570-AR-MD:
16.3 kg

RX570, RX570-AR:
7.6 kg

Net Weight (Without Stand) 4.8 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) RX570, RX570-AR:
CB, CE / UKCA (Medical Device), c-TUV-us, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES (B), RCM, RoHS, China RoHS, WEEE, CCC
FDA 510(k) Clearance for Breast Tomosynthesis, Mammography, and General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables RX570-MD, RX570-AR-MD:
DisplayPort (3 m) x 2, DisplayPort (1 m)

RX570, RX570-AR:
DisplayPort (3 m)

Others RX570-MD, RX570-AR-MD:
AC power cord (3 m) x 2, USB Type-A - USB Type-B cable (3 m) x 2, Utility Disk (RadiCS LE, PDF installation manual), instructions for use

RX570, RX570-AR:
AC power cord (3 m), USB Type-A - USB Type-B cable (3 m), Utility Disk (RadiCS LE, PDF installation manual), instructions for use

Warranty 1 Years
Dimension Drawing PDF
