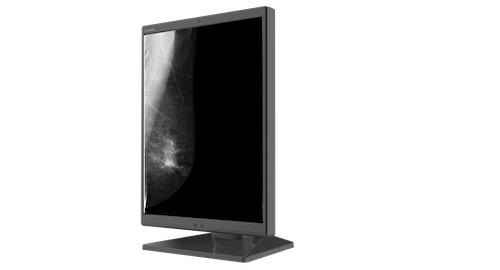

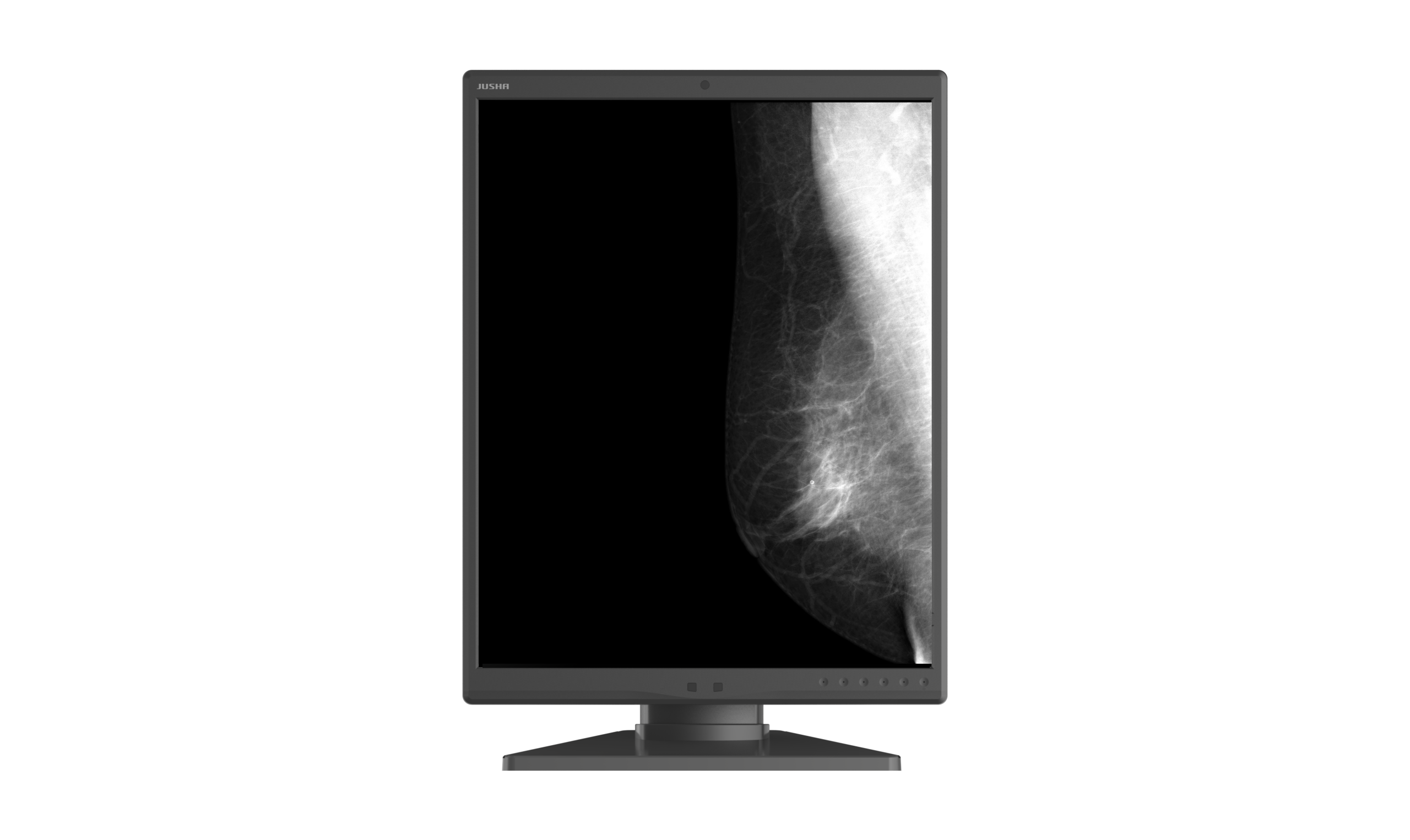

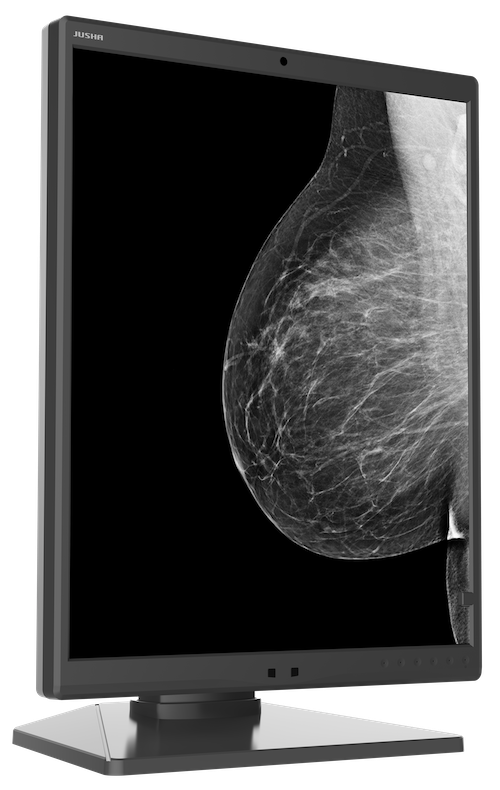

M550G
JUSHA professional display is featured with high resolution, high luminance, 16bit grayscale (65536 level), built-in LUT based on DICOM standard, designed for high-requirement of clinical diagnosis, such as PACS, Digital Mammography, CR, DR and other x-ray systems.
1.DICOM Calibration
Complying with DICOM 3.14 standard and equipped with dynamic LUT, the monitor is ensured to meet the DICOM error requirements at any brightness, contrast, and color temperature, improves the accuracy and stability of lesion diagnosis.
2. Full Screen Uniformity
Through the pixel-by-pixel full-screen brightness uniformity calibration, the difference in brightness and color temperature of different screen areas caused by the characteristics of the liquid crystal panel can be effectively reduced. Ensure that any area of the entire screen conforms to the DICOM standard, which can significantly reduce missed and misjudged diagnosis.
3. JUSHA QA Compatible
Users can check and calibrate the monitor status by themselves, removing the side effects from panel’s aging, which prolongs the lifespan of the monitor and achieving more accurate image.
4. Human Detection
Human detection feature will turn off the monitor when no person is presented. This prolongs the monitor’s life cycle, and helps save energy.
5. High Brightness
Brightness is one of the most important performance indicators of medical displays. High brightness can achieve a larger dynamic range and more gray-scale details, which can help locate the lesion and improve the accuracy of diagnosis.
6. 16-bit LUT
The 16-bit lookup table further reduces the DICOM error, and the distinction between two adjacent gray scales is more obvious, which is conducive to the diagnosis of the early lesion tissue with the smallest gray scale difference from the normal tissue.
7. Ultra-thin Bezel
To best use two single-head monitors, the ultra-thin bezel achieves the largest effective display area in the field of view, providing a seamless viewing experience.

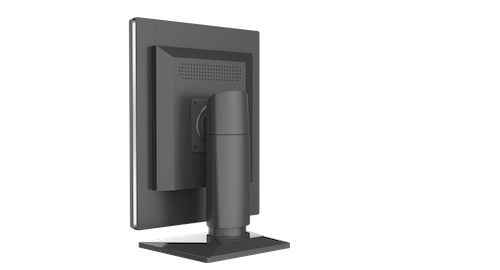

8. Multi-stance Stand
You can easily change the angle and height of the monitor with our stand, minimizing the fatigue during everyday viewing.
9. Daisy Chain
This technology connect a series of monitors to a single video output port on a computer or docking station, without tedious wiring work, and can reduce desktop clutter and cable management.
10. Ambient Light Adaptive
The monitor measures the ambient light in real time, and adjusts the display accordingly to ensure accurate diagnosis.
11. X-ray Film View (XFV)
The XFV can increase the brightness of the monitor to peak value, which can replace the traditional Lightbox for film reading and increase work efficiency.
12. Spotlight Mode
Spotlight feature helps doctor to focus on certain area, better analyze tiny details.
13. 10-bit Color Depth
This makes color transition smoother, minimized the error in adjacent color. The whole image looks more delicate.
14. Energy Efficient
With minimum power consumption of 0.5W, the monitor is eco-friendly and energy-saving,the LED backlight lifespan is also longer.
Model | M550G |
Type | IPS |
Retroilluminazione | LED |
Diagonal size | 21.3" |
Display area | 422.4(H) × 337.92(V) mm |
Resolution | 2560 × 2048 |
Aspect ratio | 5:4 |
Pixel Pitch | 0.165 × 0.165 mm |
Color Depth | 10-bit |
LUT Depth | 65536 |
Viewing angles | 178° |
Maximum brightness (typical) | 3000 cd/m² |
Maximum calibrated brightness | 1000 cd/m² |
Default brightness | 500 cd/m² |
Minimum brightness | 200 cd/m² |
Presets |
DICOM, GAMMA 2.2, GAMMA 2.4, CT/MRI-JS, DSA, DSI, BYPASS
|
Uniformity calibration | Yes |
Contrast ratio | 2000:1 |
Response time (Ton+Toff)/2 | 12.5 ms |
Qualitas QA | Yes |
Features | SmarTouch, XFV, PI, ABA, ALC, Real-time DICOM calibration |
Video input | DP × 1, DVI × 1 |
Video output | DP × 1 |
USB Ports | Upstream USB-B 2.0 × 1, Downstream USB-A 2.0 × 2 |
Power input | 24V DC – 3.75A |
Typical power | 35 W |
Maximum power | 80 W |
Power saving | < 0.5 W |
Stabilizzatore di retroilluminazione | Yes |
Front sensor | Yes |
Ambient light sensor | Yes |
Other sensors | Human, Temperature |
Protective glass | No |
Housing color | Silver |
Dimensions with stand (W × H × D) | 368 × 521 × 238 mm |
Dimensions without stand (W × H × D) | 368 × 474 × 70 mm |
Net weight with stand | 12.10 ± 0.5 kg |
Net weight without stand | 6.55 ± 0.5 kg |
VESA | 100 × 100 mm |
Certifications | CE, FDA, CCC, Inmetro, BIS, Energy saving |
