MS-236WT

RadiForce MS236WT

23.0″ Touch Panel Color LCD Monitor
23-inch multitouch panel monitor featuring smooth and detailed handwriting input with DICOM preset mode for displaying medical records.
Compare
Add to wishlist
Categories: EIZO, Medical Monitors
Share
  • Description
  • Reviews (0)
  • Specifications
Description

Making Each Life Visual

Smooth and Detailed Handwriting with Stylus Pen

The MS236WT features projected capacitive touch technology which is more reliable compared to other touch technologies, allowing for drag and flick finger operations to be smooth. In addition to the supplied passive touch pen, the monitor also accepts input from commercially available active stylus pens, so small and detailed letters can easily be written into a medical record.

Smooth and Detailed Handwriting with Stylus Pen

stylus penEIZO ensures customer peace-of-mind by performing comprehensive compatibility testing. See what commercially available stylus pens are proven to be compatible:

Write While Resting Against the Screen

The screen can detect up to 10 simultaneous touches so multiple people can easily operate a variety of applications. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input, so that you can focus on your writing.

Palm rejection minimum activation area is 2 x 2 cm.

Write While Resting Against the Screen

Optimal Medical Image Viewing

The monitor features a DICOM preset mode whose grayscale tone is preset on the production line for optimum reviewing of medical images.

Optimal Medical Image Viewing

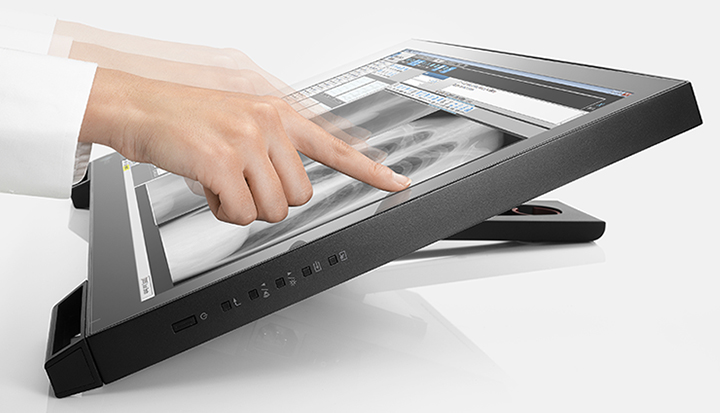

Comfortable-to-Use, Fully Flat Design

The fully flat surface provides a seamless touch experience to the edges of the screen. This makes swiping motions and scrolling easy. Furthermore dust and fingerprints can be wiped off, making cleaning a breeze.

Comfortable-to-Use, Fully Flat Design

High Durability

The touch screen has a non-scratch glass surface with a hardness of 5H. In addition, the monitor is guaranteed to endure up to 50 million touches, meaning that you can confidently use the monitor for a long time.

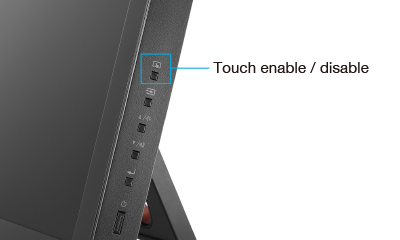

Touch Detection Control

Touch Detection ControlUsers can easily turn touch detection on or off by pushing the button conveniently located on the monitor’s side. This helps to prevent unintended inputs when cleaning the monitor.

Quick Recovery Controls

Due to environmental factors such as electromagnetic noise, projective capacitive touch technology can malfunction. To combat this, the monitor is equipped with technology which adjusts the touch sensitivity to minimize incorrect touch response. This ensures that the screen maintains accurate touch interaction during use.

When installing for the first time, the bundled “TPOffset (software for adjusting touch panel sensitivity)” is necessary.

Dedicated Touch Panel Driver

In addition to Windows’ standard touch panel driver, a dedicated touch panel driver is also available for use with multi-monitor configurations and touch panel sounds.

Compatible OS: Windows 11 / 10

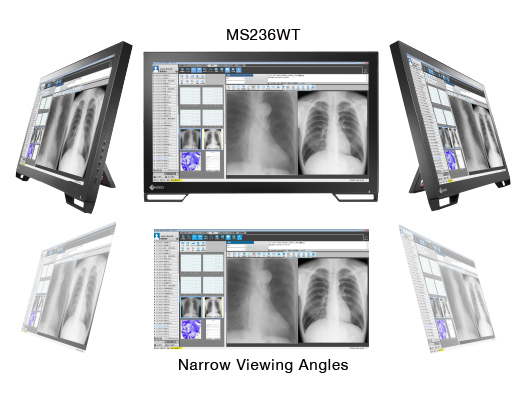

Clear View from Any Angle

The MS236WT uses an LED-backlit IPS panel with wide viewing angles that minimizes color shift and contrast changes even when multiple people view the screen.

Clear View from Any Angle

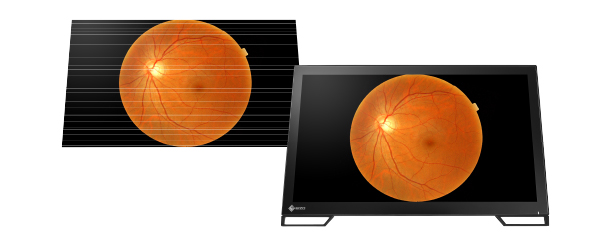

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The MS236WT relieves eye fatigue by regulating brightness to make flicker unperceivable.

Flicker-Free Viewing

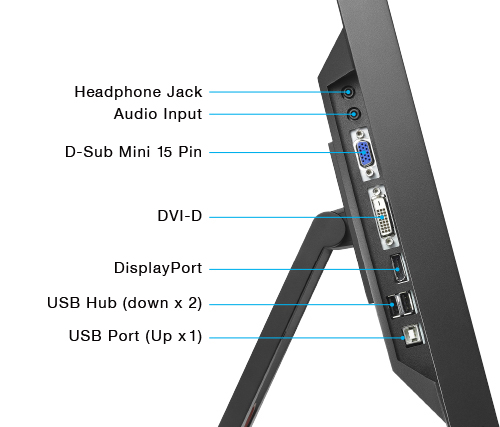

Various Input Terminals

The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs which are conveniently located on the side for easy access.

Various Input Terminals

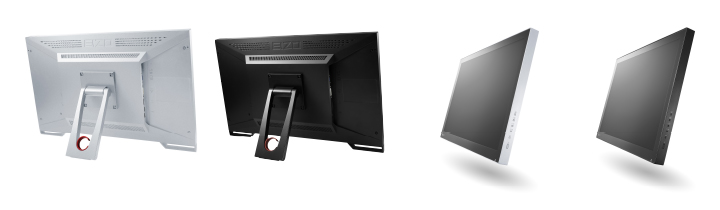

Model Variation

The MS236WT comes in a reclining stand and without stand variety, with gray or black cabinet colors. You can easily choose the ideal model for your environment.

Model Variation

Reclining Stand

Reclining StandThe reclining stand provides flexible positioning to allow the monitor to rest flat on your desk when using a touch-pen, or to sit up when touching with your hand.

Customer Assurance with Medical Standards

Customer Assurance with Medical StandardsThe MS236WT meets various medical standards and safety/EMC standards for use in medical institutions.

3-Year Warranty

EIZO and its authorized distributors offer a three-year limited warranty.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “MS-236WT” Cancel reply

Your email address will not be published. Required fields are marked *

Specifications
Model Variations MS236WT-LGY: with Reclining Stand, gray MS236WT-LBK: with Reclining Stand, black MS236WT-FGY: without stand, gray MS236WT-FBK: without stand, black
Panel
Type Color (IPS)
Backlight LED
Size 23.0" (58 cm)
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 509.2 x 286.4 mm
Pixel Pitch (H x V) 0.265 x 0.265 mm
Display Colors 8-bit: 16.77 million from a palette of 1.06 billion (10-bit) colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 260 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 11 ms (gray-to-gray)
Touch Panel
Type Projected Capacitive
Touch Points 10
Surface Treatment Anti-Glare coating
Communication Protocol USB
Surface Hardness 5 H
Compatible OS Windows 11, Windows 10 (64-bit, 32-bit)
Video Signals
Input Terminals DisplayPort (HDCP1.3), DVI-D (HDCP1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V) DVI: 31 - 64 kHz / 59 - 61 Hz (VGA Text: 69 - 71 Hz) DisplayPort: 31 - 68 kHz / 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 31 - 81 kHz / 55 - 76 Hz
Sync Formats Separate
USB
Upstream USB 2.0: Type-B
Downstream USB 2.0: Type-A x 2
Audio
Speakers 1.0 W + 1.0 W
Input Terminals Stereo mini jack, DisplayPort
Output Terminals Headphones (Stereo mini jack)
Power
Power Input AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption 19 W
Maximum Power Consumption 42 W
Power Save Mode 0.7 W or less
Features & Functions
Preset Modes User1, User2, sRGB, DICOM
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 6.6 kg
Net Weight (Without Stand) 6 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA Class I
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DVI-D (3 m), DisplayPort (3 m)
Others AC power cord (3 m), USB Type-A - USB Type-B cable (3 m), Audio cable (2.1 m), touch pen, holder for touch pen, Utility Disk (user's manual, touch panel driver, TPOffset), cleaning cloth, mask sheet
Warranty 3 Years
