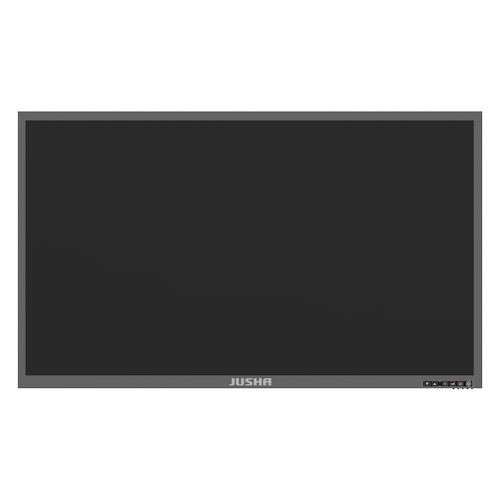

S5810
Integrated surgery fusion display system
It could be used applied in interventional operating room, reporting room, meeting room, remote teaching room and various operating room. It supports up to 52 inputs signals and displaying up to 16 windows at the same time. It also supports window stitching, picture in picture, picture out picture and video roaming. With 21 built-in layout presets and user custom mode, it covers all possible applications. The independent emergency backup monitor, dual power system and dual backlight backup technologies greatly increases the reliability. It supports 8MP resolution, with a maximum of 100 meters lossless remote transmission. This product provides a high performance and all-around video transmission, display and control solution for different scenarios of interventional surgery.
1. Single output with Multi-input

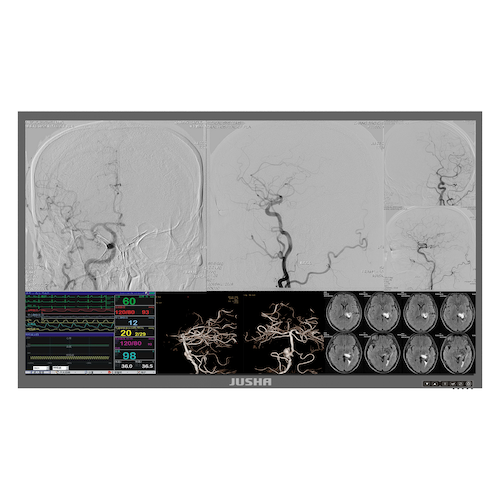

It supports up to 52 inputs signals, and displaying up to 16 windows at the same time. lt also supports window stitching, picture in picture, picture out picture and video roaming.
2. Customizable input port
The input ports can be customized according to customer’s requirement. If customer wish to upgrade ports, you only need to change the input ports board card.
3. High reliability
Dual power system, dual backlight system and emergency monitor for the main signal，greatly increases the reliability.
4. Remote transmission
It solves the issue of video signal transmission from the operating room, and supports 8MP resolution with a maximum of 100 meters.
5. Easy to upgrade and extend
With the board card design, customers can easily upgrade and modify the device.
6. Various layout pattern
There are 21 build-in layout presets, and it supports customizable windows layout. The custom mode could be configured and saved from our engineers when installing the equipment at the first time, and customers can change the layout through the software afterwards.
7. Automatic calibration
With several build-in optical sensors and auto-calibration system, the monitor could ensure the image quality and performance even after using for a long time.
8. Remote control
It supports features that could be remotely controlled, such as turning on and off, changing the curve and brightness.
9. Software control
It supports remote control using our software on PC or tablet.
| Model | DSA-S5810 |
| Type | VA |
| Backlight | LED |
| Diagonal size | 58" (1460.2 mm) |
| Display area | 1270.08 × 721.44 mm |
| Resolution | 3840 × 2160 |
| Aspect ratio | 16:9 |
| Pixel Pitch | 0.33075 × 0.334 mm |
| Color Depth | 30-bit |
| LUT Depth | 42-bit |
| Viewing angles | 176° |
| Maximum brightness (typical) | 700 cd/m² |
| Default brightness | 500 cd/m² |
| Minimum brightness | 200 cd/m² |
| Presets | GAMMA2.0, GAMMA2.2, DICOM, CUSTOM-G, CUSTOM-P, CUSTOM-S |
| Contrast ratio | 4000:1 |
| Response time (Ton+Toff)/2 | 9.5 ms |
| Features | PIP, Multi-window (4) |
| Video input | DVI × 1, DP1.2 × 2, HDMI 1.4 × 2, VGA × 1 |
| Other I/O | USB-A (DC 5V 1A Output) × 2, DC 12V (with plug 5.5 × 2.5 mm) × 1 |
| Power input | AC: 110–240V, 5A, 50/60 Hz |
| Typical power | 300 W |
| Maximum power | 440 W |
| Power saving | < 5 W |
| Backlight stabilizer | Yes |
| Protective glass | Yes |
| Housing color | Black |

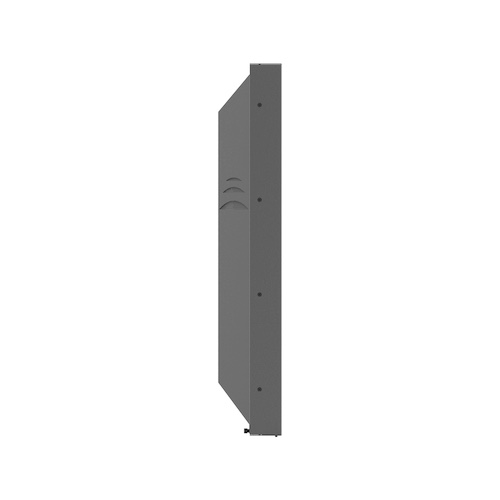

| Dimensions without stand (W × H × D) | 1319 × 786 × 135 mm |
| Net weight without stand | 47 kg |

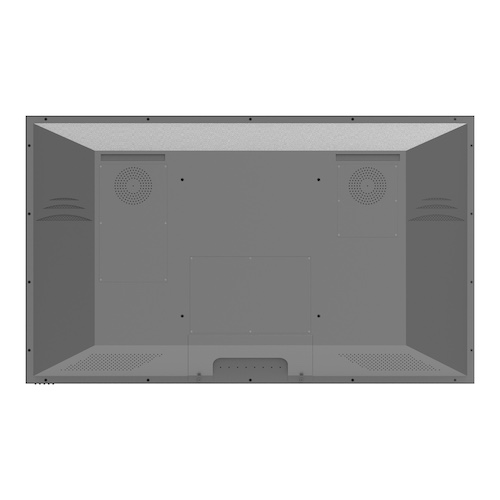

| VESA | 400 × 400 mm |
| Certifications | CCC, CE |
